2026  PJ Trailers  DL (16')  - DL16T1427135

2026 PJ Trailers DL (16')

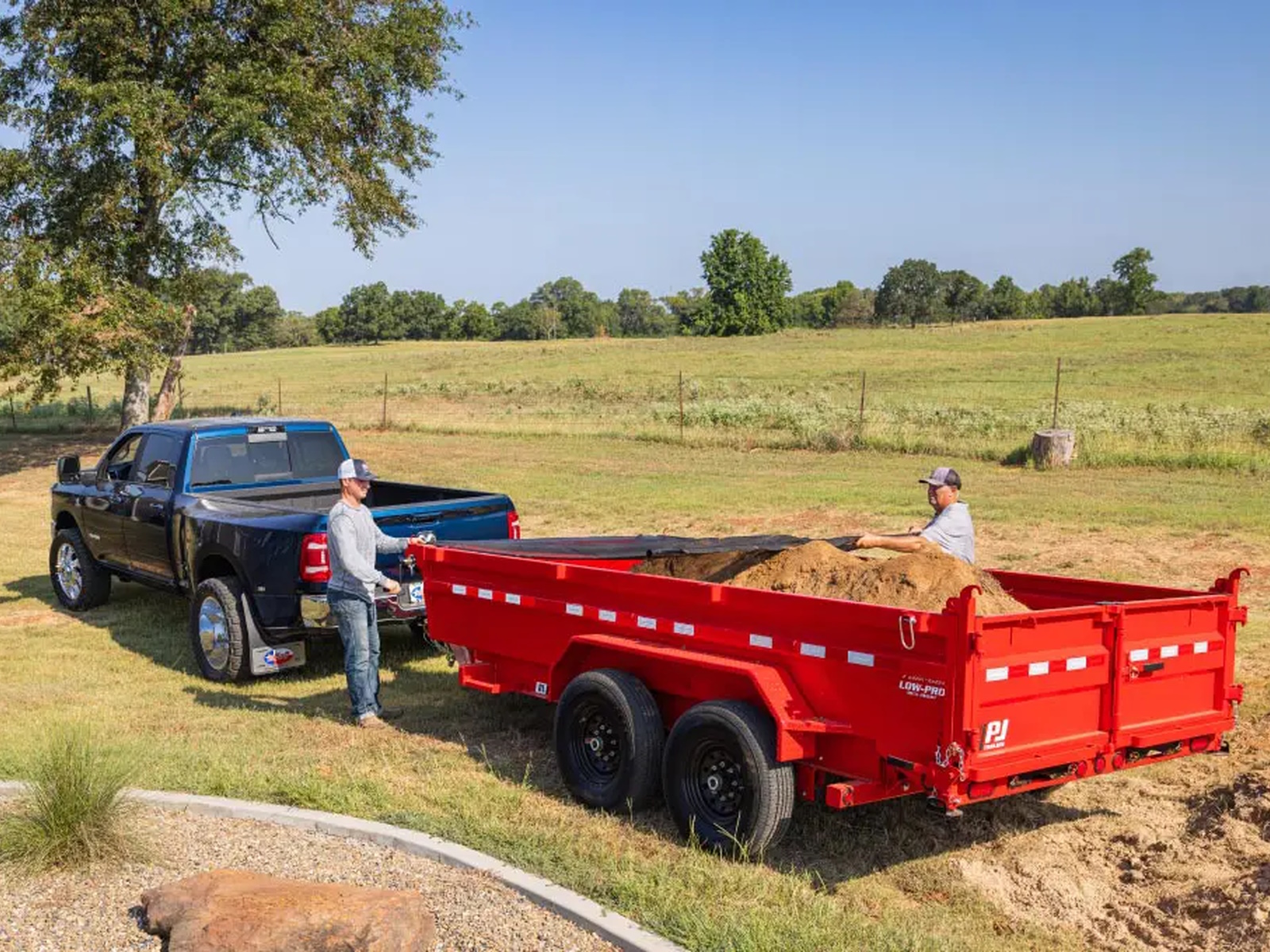

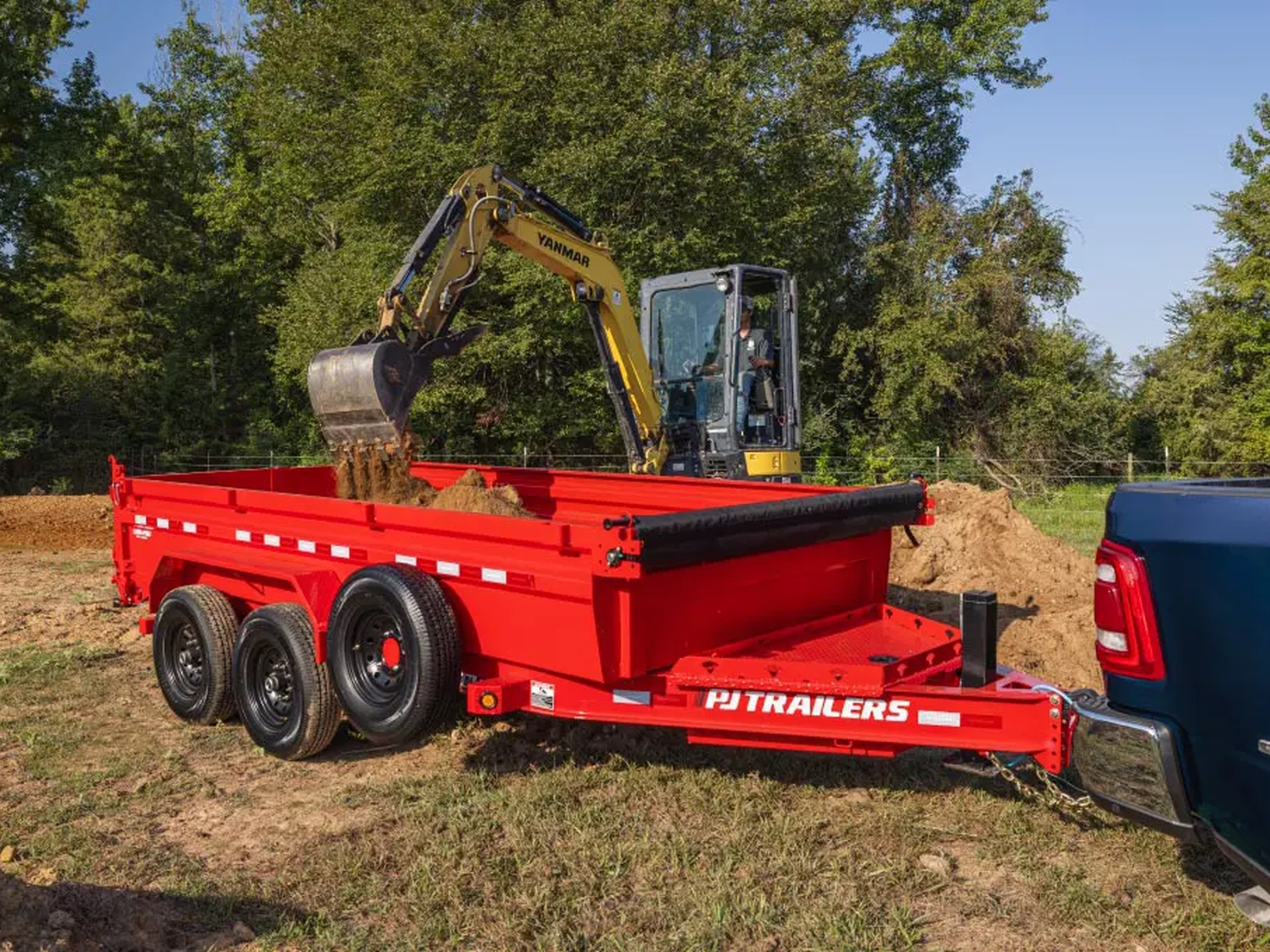

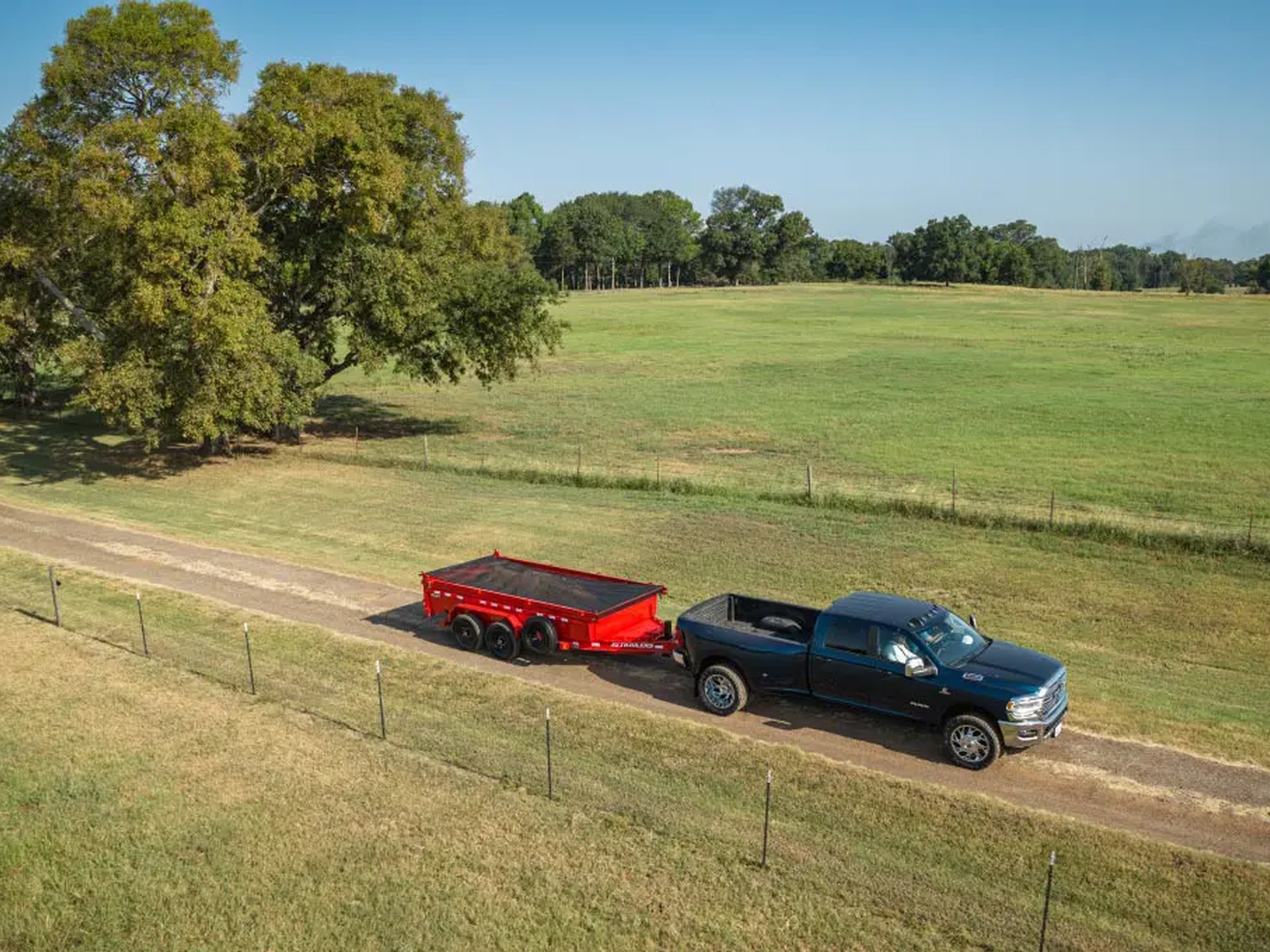

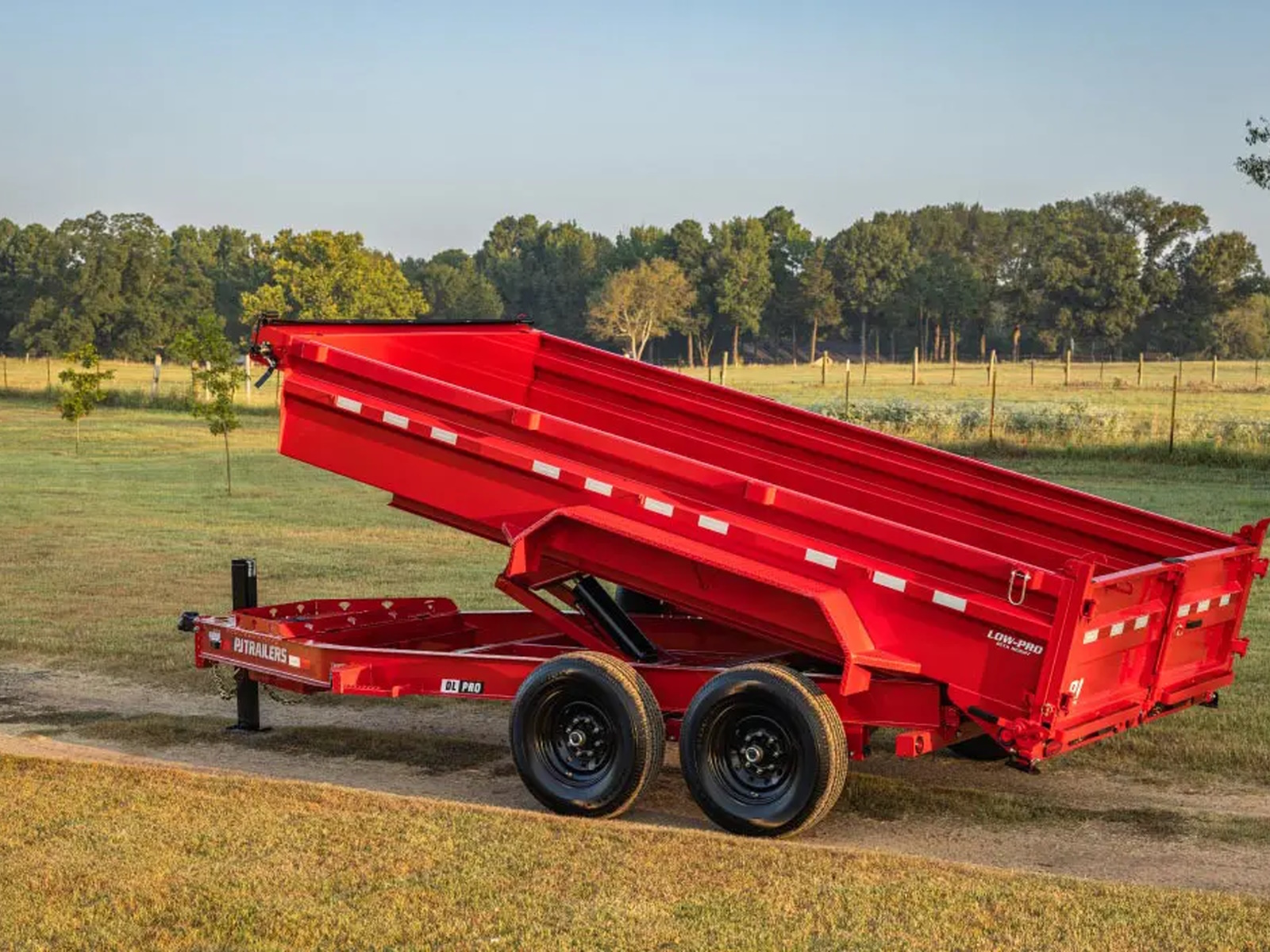

14K Low-Profile Dump PRO (DL)

If you’re a pro, then it’s time to start hauling like one—say hello to the 14K Low-Profile Dump PRO Trailer (DL).

It’s tougher. It’s stronger. It’s sturdier. With a heavy-duty 7-gauge floor and seamless I-beam design, the DL is engineered around the needs of professionals and for those transporting large amounts of material or equipment. And while it’s built to handle heavy-duty tasks, it’s also packed with convenient features that make your life easier such as an ultra-low profile deck and accessible slide-in channel ramps.

Features may include:

• Axles   [72BS] (2) 7,000# Electric / Spring
• Suspension    6-Leaf Slipper Spring Suspension
• Tongue    8" x 10 lb. Formed I-beam Tongue
• Coupler    [J] BP 2-5/16" Adjustable- Demco EZ-Latch
• Jack    Drop Leg Jack (12,000 lb.)
• Frame    8" x 10 lb. Formed I-Beam Main Frame
• Cross-Members  3” Channel Crossmembers 16” oc
• Floor    7ga. Steel Bed
• Fenders    1/8" Treadplate Steel Fenders
• Ramps    6' 5" Slide-In Channel Ramps
• Stake Pockets    24" Stake Pocket Spacing
• Wiring    All-Weather Wiring Harness (7-way RV)
• Tires    ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
• Paint Color    [K] Primer + Black Powder Coat
• Tie-Downs  (4) D-Rings (Welded inside the Box)
• Breakaway System    Electric Breakaway System w/ Charger
• Battery    12V Deep Cycle Battery
• Charging System    110V Integrated Trickle Charger
• Hydraulics    Hydraulic - Power Up/Power Down & Gravity Down
• Lift Type    Scissor Lift
• Sides    24" 10ga. UniWall Steel Sides
• Stabilizers    Rear Stabilizer Stands
• Steps    Ultra-Wide Monster Step
• Storage    Lockable Full Tongue Toolbox (Houses Battery, Pump + Storage)
• Tarp    Roll-up Tarp Kit (Pull Bar) 7' x 20'
• Cargo Winch
• Tail    [T] Split / Spreader Gate
• Dump Gate   2-Way Gate (Barn Doors & Spreader Gate)
• Lift Cylinder    5" x 17" Cylinder w/Scissor & 5" x 21" on 16'
